We are Manufacturer, Supplier, Exporter of Special Purpose Machines (SPM), Rotary Pneumatic Cylinders, Special purpose Hydraulic Press, SPM's for Process Automation, Special purpose Hydraulic Press, Cage Stacker from Pune, Maharashtra, India.
SPM are those machines which are not available off the shelf. These are not Covered in standard manufacturing programs. Therefore those have to be designed & tailor made as Per the customers specific requirements. They are also called as bespoke machines. Always in the production process there is a long felt need to improve the quality of product, minimize rejection and increase the productivity per person, to cater to the pressing circumstances in the globalised world economy.
We are Manufacturer, Supplier of Rotary Pneumatic Cylinder. It is a special purpose cylinder with rotary connection & linear movement used for Collet clamping. There are three models as per force requirement.
-
Specifications :
- Specially engineered design
- Low inertia aluminum body
- Effective sealing of rotary joint
- Trouble free operation
- Facility for external mounting of position sensor
| TYPE | RPC-100 | RPC-125 | RPC-160 |
| PISTON DIA | 100 | 125 | 160 |
| STROKE | 15 MM | 15 MM | 15 MM |
| RPM (MAX) | 3000 | 2500 | 2000 |
| FORCE AT 5 BAR AIR PRESSURE | 350 KG. | 550 KG. | 900 KG. |
| MOUNTING | 3 NOS. M12 TAP. @102 MM PCD | 3 NOS. M12 TAP. @102 MM PCD | 3 NOS. M12 TAP. @102 MM PCD |

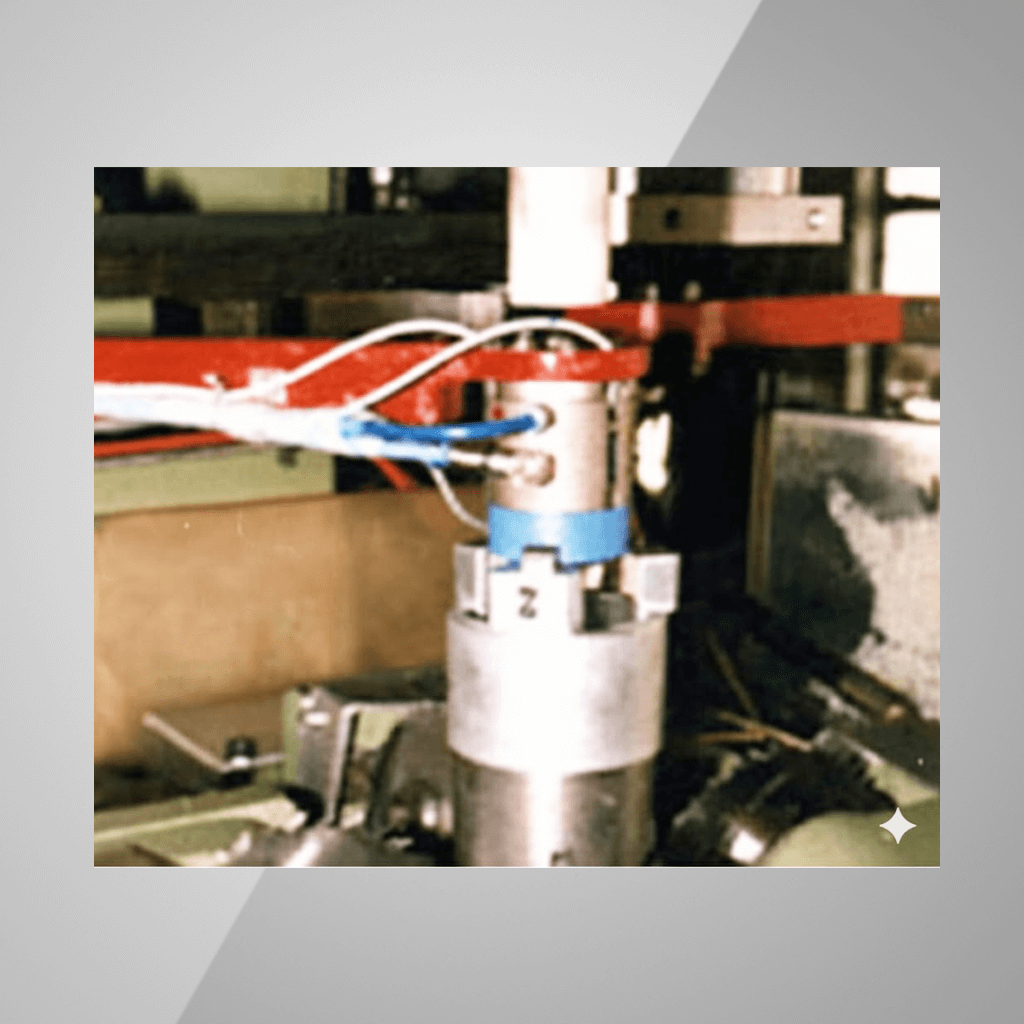

| Automation of Non Standard Machining Processes | |
|---|---|
| ▸ | Fine cutting / facing |
| ▸ | Commutator turning operation |
| ▸ | Valve end grinding machines |

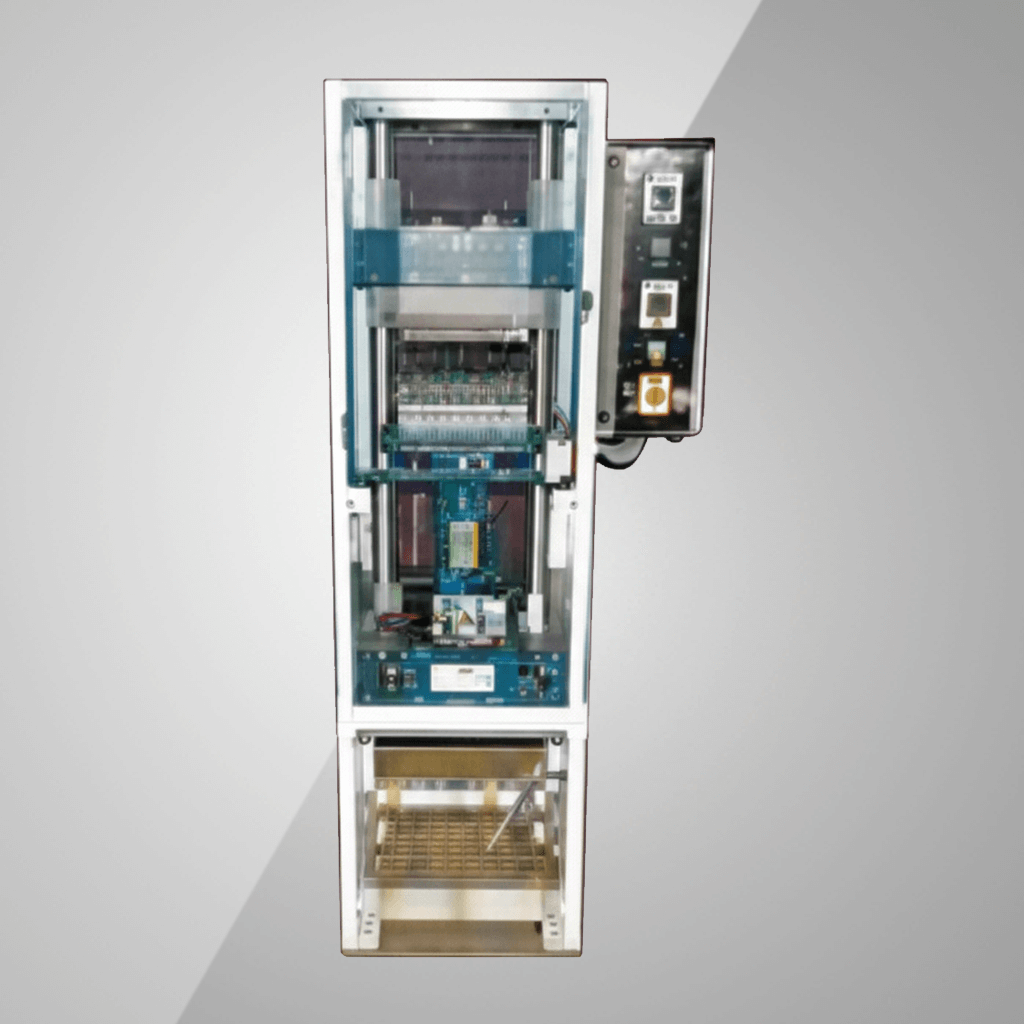

We are Manufacturer, Supplier, Exporter of Special purpose Hydraulic Press. It can be supplied as per the requirement. A hydraulic press uses a hydraulic cylinder to generate a compressive force. Hydro pneumatic or Pure pneumatic presses also can be supplied. Plate heating option is available.

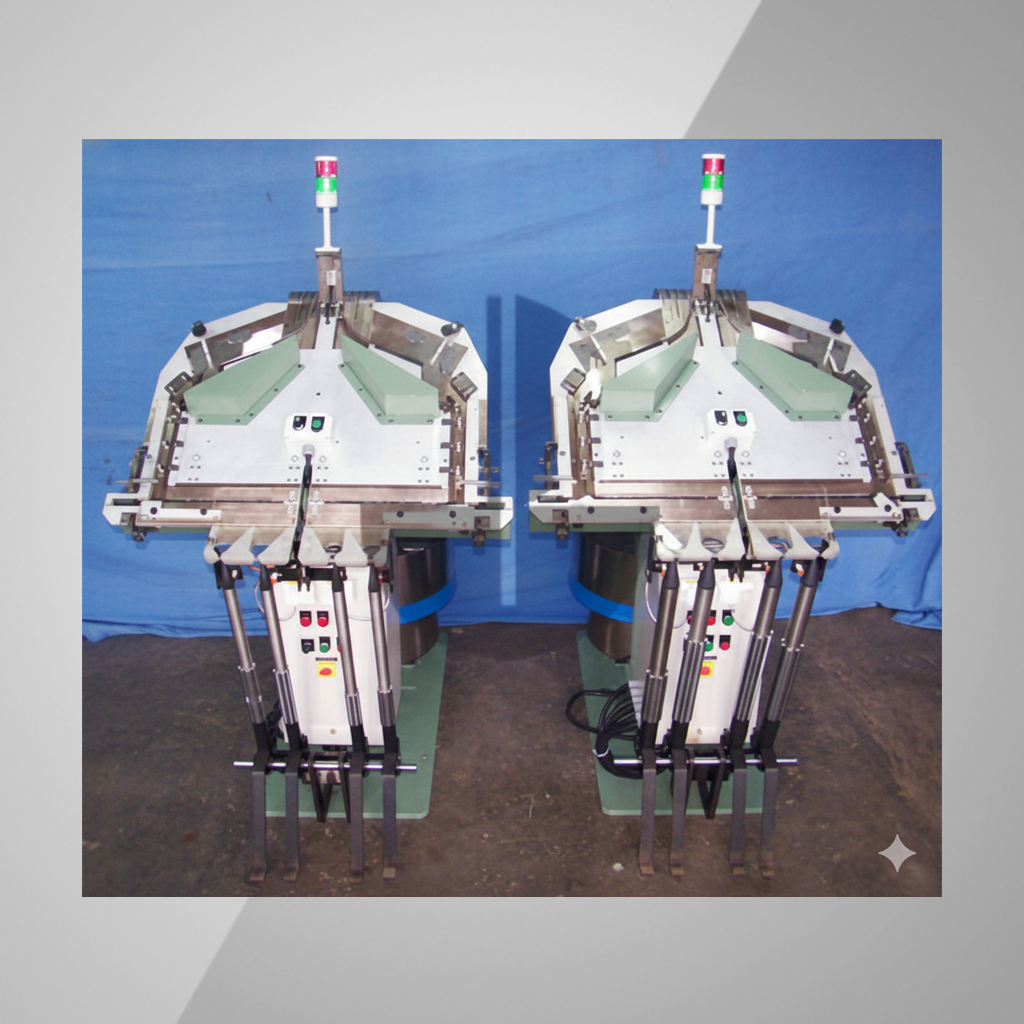

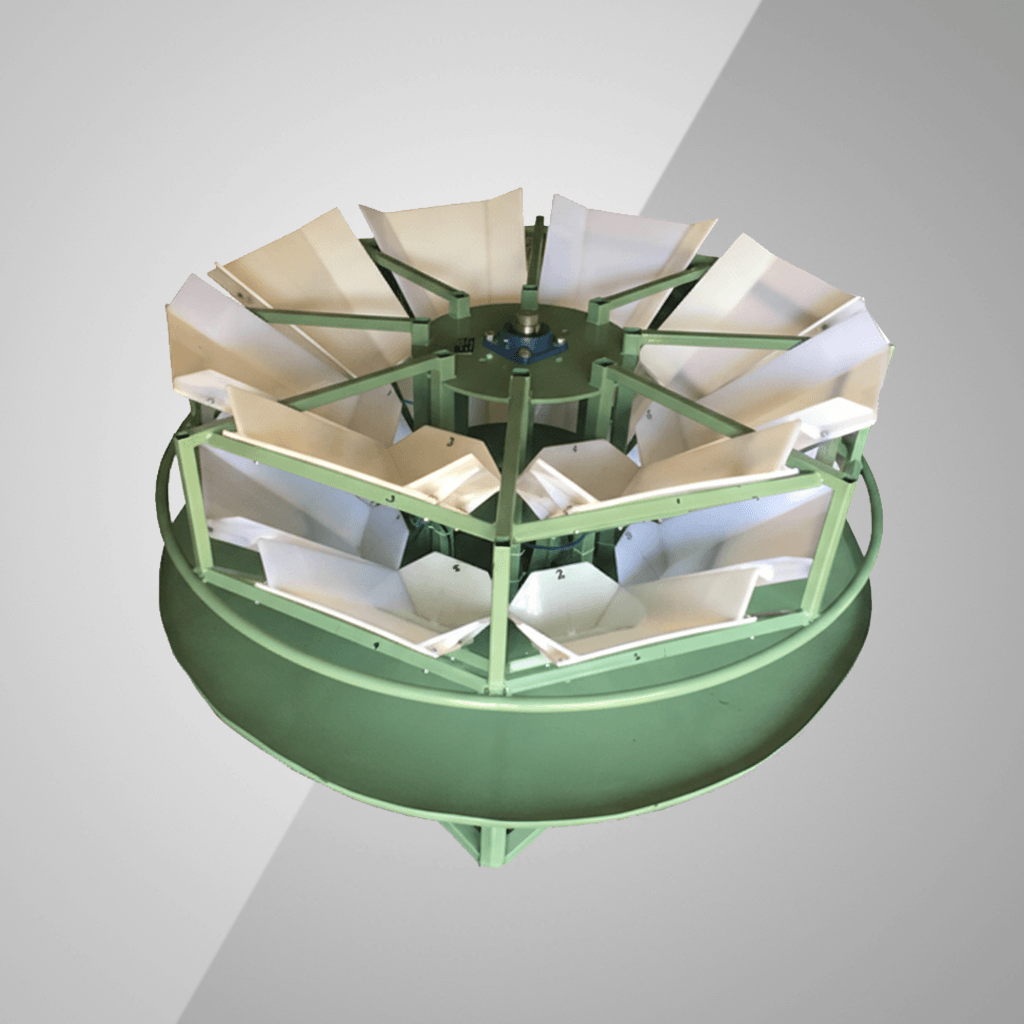

Special Machines for Feeding, Orientation And Stacking of Parts.
Conveyorised operation, Cam mechanisms are involved.
